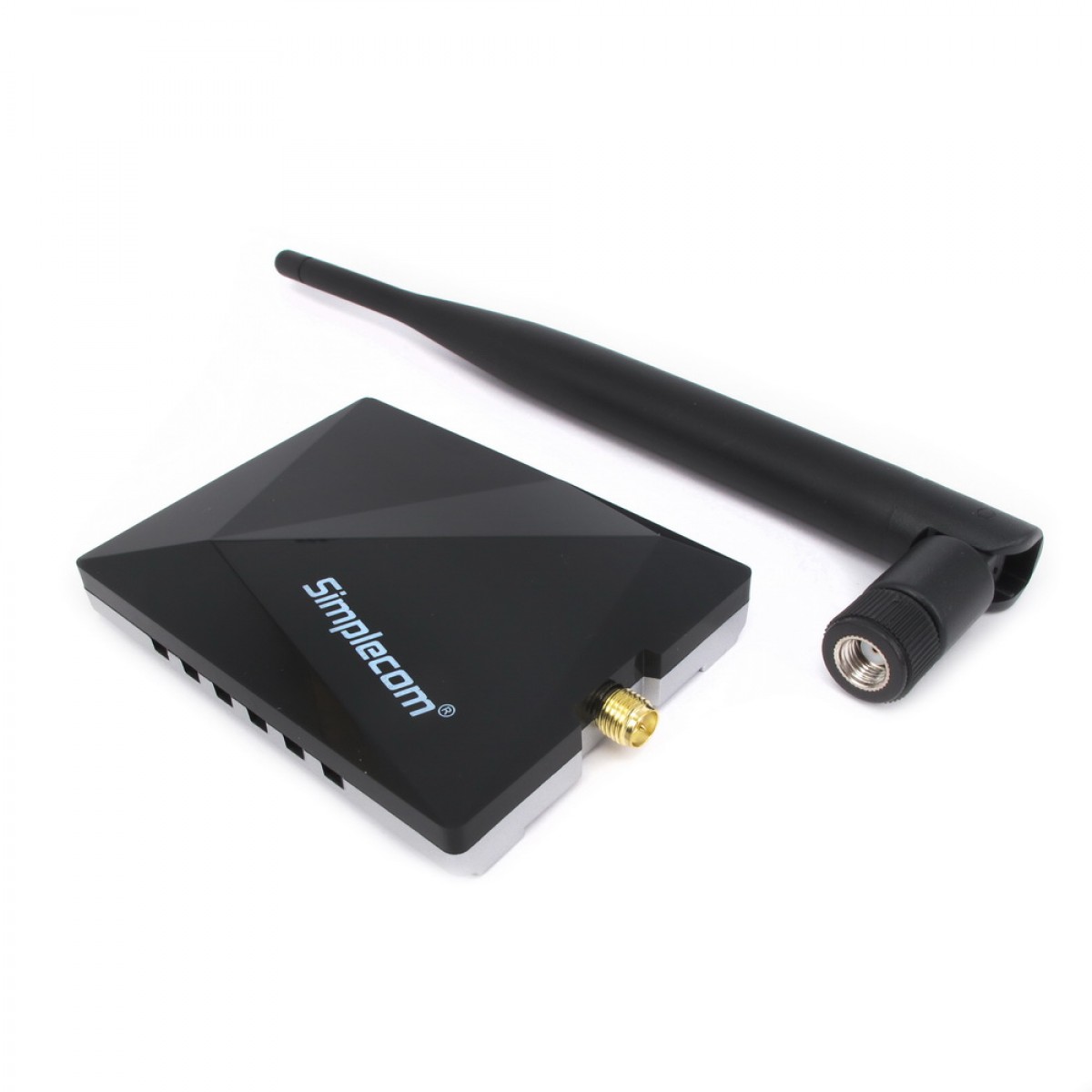

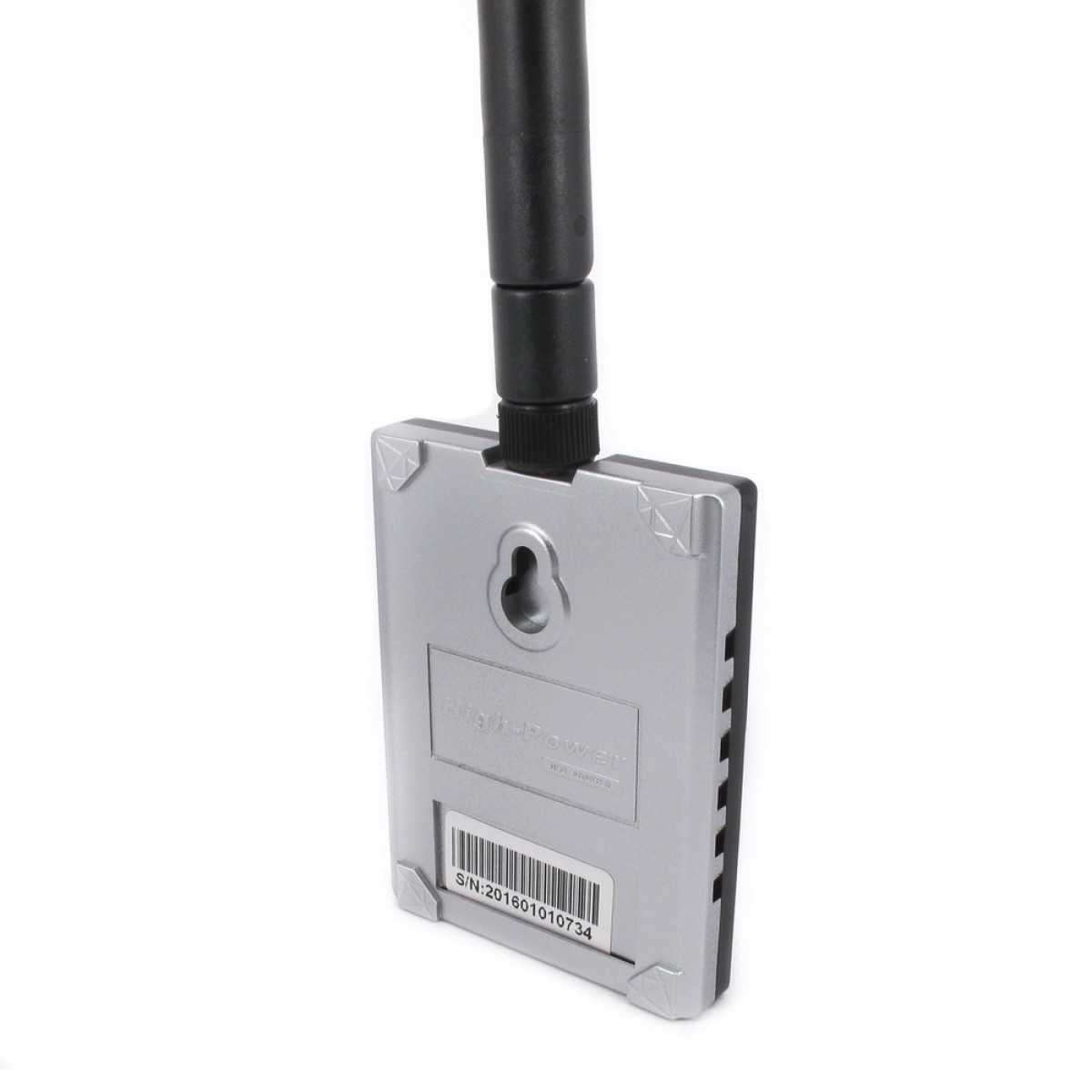

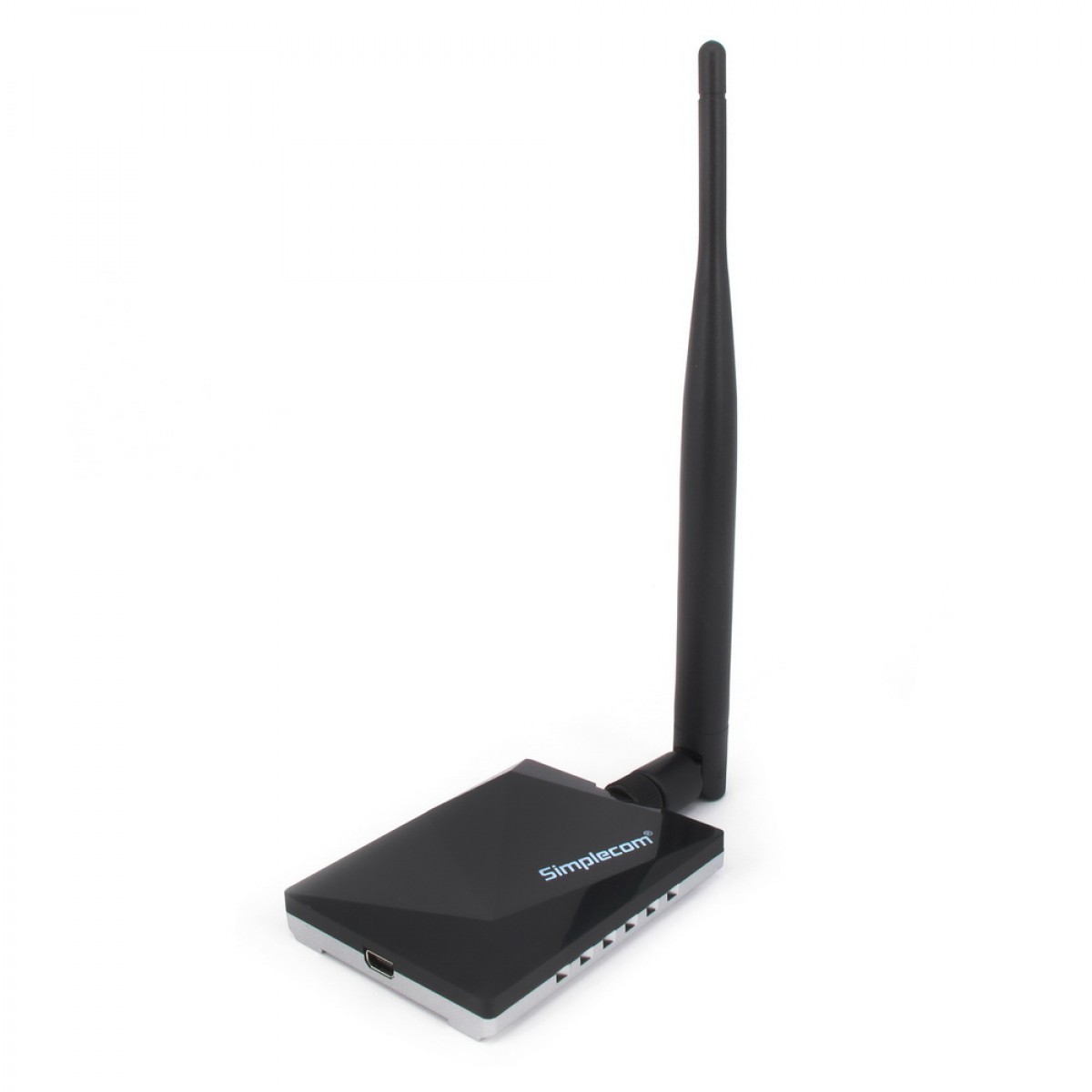

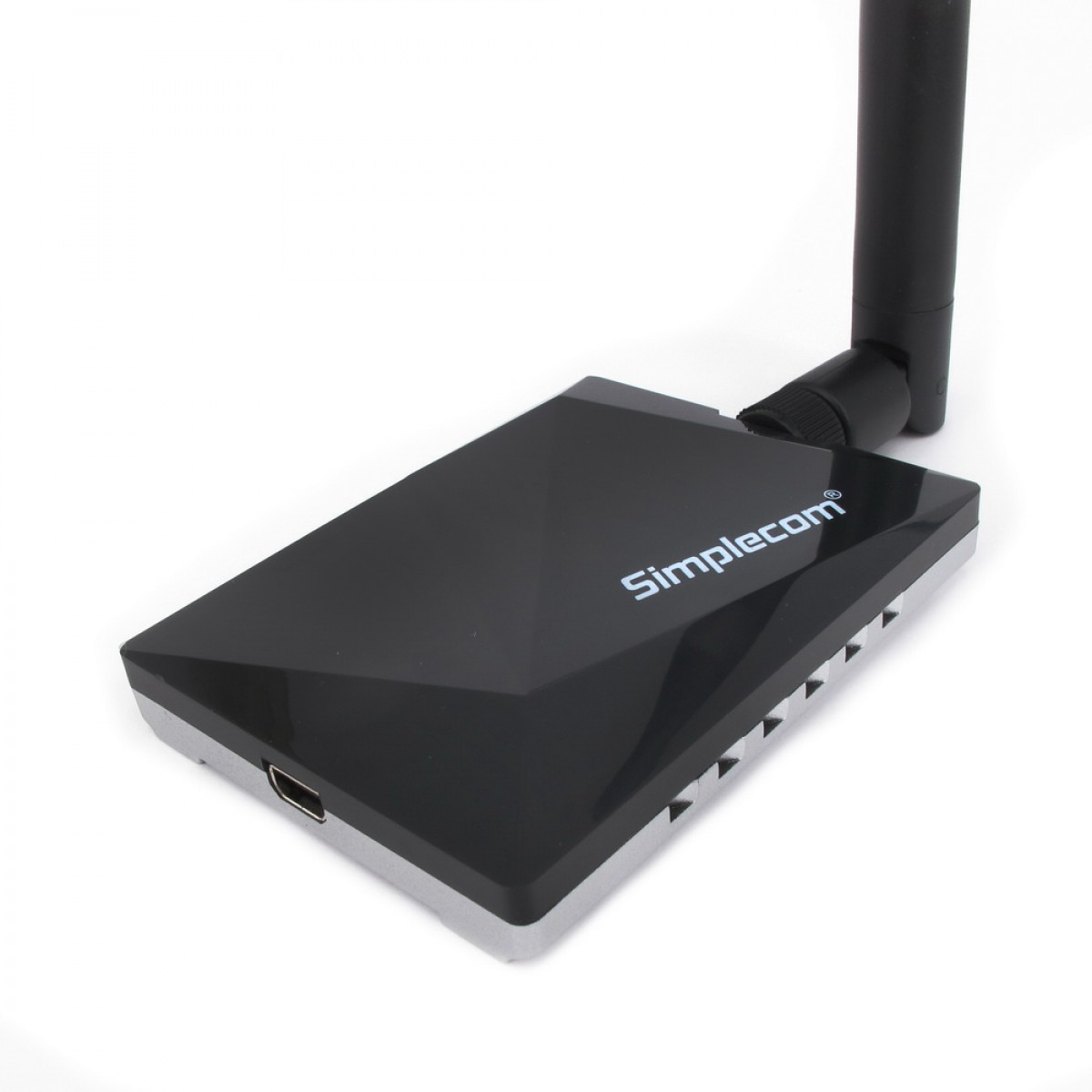

Simplecom NW200 USB Wireless N Long Range 802.11n Wifi Adapter 6dBi High Gain Antenna

Sku: NW200

 Availability: Out of stock

 Add Your Review

RRP: $29.95
 Get In Stock Notice by Email.

Quick Overview


  • Compatible with IEEE 802.11b/g/n wireless standards

  • 2.4GHz frequency band, MIMO (Multiple Input Multiple Output)

  • 2000mW of power which is more powerful than regular Wifi adapter

  • Complies with USB2.0 specifications

  • High speed transfer TX data rate up to 150Mbps

  • Includes a 7inch 6dBi ScrewOn Swivel Rubber Antenna and upgradeable

  • Supports wireless data encryption with 64/128bit WEP, WPA, WPA2, TKIP,AES

  • Compatible with Windows XP, Vista, 7, 8, 10; Linux; MacOS 10.7-10.10

Details

Simplecom NW200 is an IEEE 802.11b/g/n Wireless USB adapter. It provides users to connect IEEE 802.11b/g/n wireless network at 150Mbps and 2.4GHz band, which is also compatible with IEEE 802.11b/g wireless devices at 54 Mbps.  Adding NW200 to your laptop or desktop computer to enhance range and signal quality at longer distance. The USB 2.0 interface provides for an easy connection to your PC, or other compatible device, and brings you all that heavylifting capacity for streaming, gaming, and downloading.

Features

  • Compatible with IEEE 802.11b/g/n wireless standards
  • 2.4GHz frequency band, MIMO (Multiple Input Multiple Output)
  • 2000mW of power which is more powerful than regular Wifi adapter
  • Complies with USB2.0 specifications
  • High speed transfer TX data rate up to 150Mbps
  • Includes a 7inch 6dBi Screw-On Swivel Antenna and upgradeable
  • Supports wireless data encryption with 64/128bit WEP, WPA, WPA2, TKIP,AES
  • Compatible with Windows XP, Vista, 7, 8, 10; Linux; MacOS 10.7-10.10

Specification

  • Wireless Standard: IEEE 802.11b/g/n, USB 2.0 standard
  • Data Rate: 802.11b up to 11Mbps, 802.11g up to 54Mbps, 802.11n up to 150Mbps
  • OS Support : Windows XP, Vista, 7, 8, 10; Linux; MacOS 10.7-10.10
  • Interface: USB 2.0 mini USB
  • Antenna type : 1 x 2.4Ghz RPSMA connector
  • Antenna: 6dBi 2.4GHz Antenna
  • Frequency Range : 2.412~2.483 GHz
  • Chipset : Mediatek RT3070
  • Channel: 1~11 channels (North America, 1~13 channels (General Europe), 1~14 channels (Japan)
  • Output power : 802.11b : 33dBm±1, 802.11g : 32dBm±1, 802.11n (HT20) : 32dBm±1, 802.11n (HT40) : 33dBm±1
  • Sensitivity : 11b: 92dBm, 11g: 76dBm, 11n: 73dBm@HT20, 70dBm@HT40
  • Data Modulation Type : BPSK,QPSK, CCK and OFDM
  • Power : Voltage: 5V+5%
  • Security: WEP 64/128, 802.1X support, WiFi Protected Access (WPA), WPAPSK, WPA II, Cisco CCX support, WAPIPSK, WAPICERT Environment
  • Operating Temp : 0°C ~ +50°C
  • Storage : 10°C ~ +65°C
  • Humidity : 5%~98% noncondensing

Package Contents

  • 1x NW200 USB wifi Adapter
  • 1x 6dBi High Gain Antenna
  • 1x USB 2.0 Cable
  • 1x Driver CD

Downloads

Description Size Type Download
NW200 Driver for Windows v.011916 40.85 mb zip
NW200 Driver for MAC10.7-10.10 15.97 mb zip
NW200 Driver for Linux 816.37 kb zip
