Simplecom DA316 USB 3.0 to HDMI + VGA Video Card Adapter Full HD 1080p

Sku: DA316

 Availability: In stock

 Add Your Review

RRP: $34.95
OR

Quick Overview


  • SuperSpeed USB 3.0 Interface, support resolution up to 1920x1080

  • Compact and portable design, easy to carry

  • Simple installation, built-in USB flash for driver software

  • USB powered, no external power required

  • Aluminium casing to ensure stable performance and heat dissipation

  • HDMI port supports both video and audio, VGA output video only

  • HDMI and VGA ports can output duplicate screen simultaneously

  • Support Extend or Mirror Mode

  • Compatible with Windows 7 / 8 / 8.1 / 10

Details

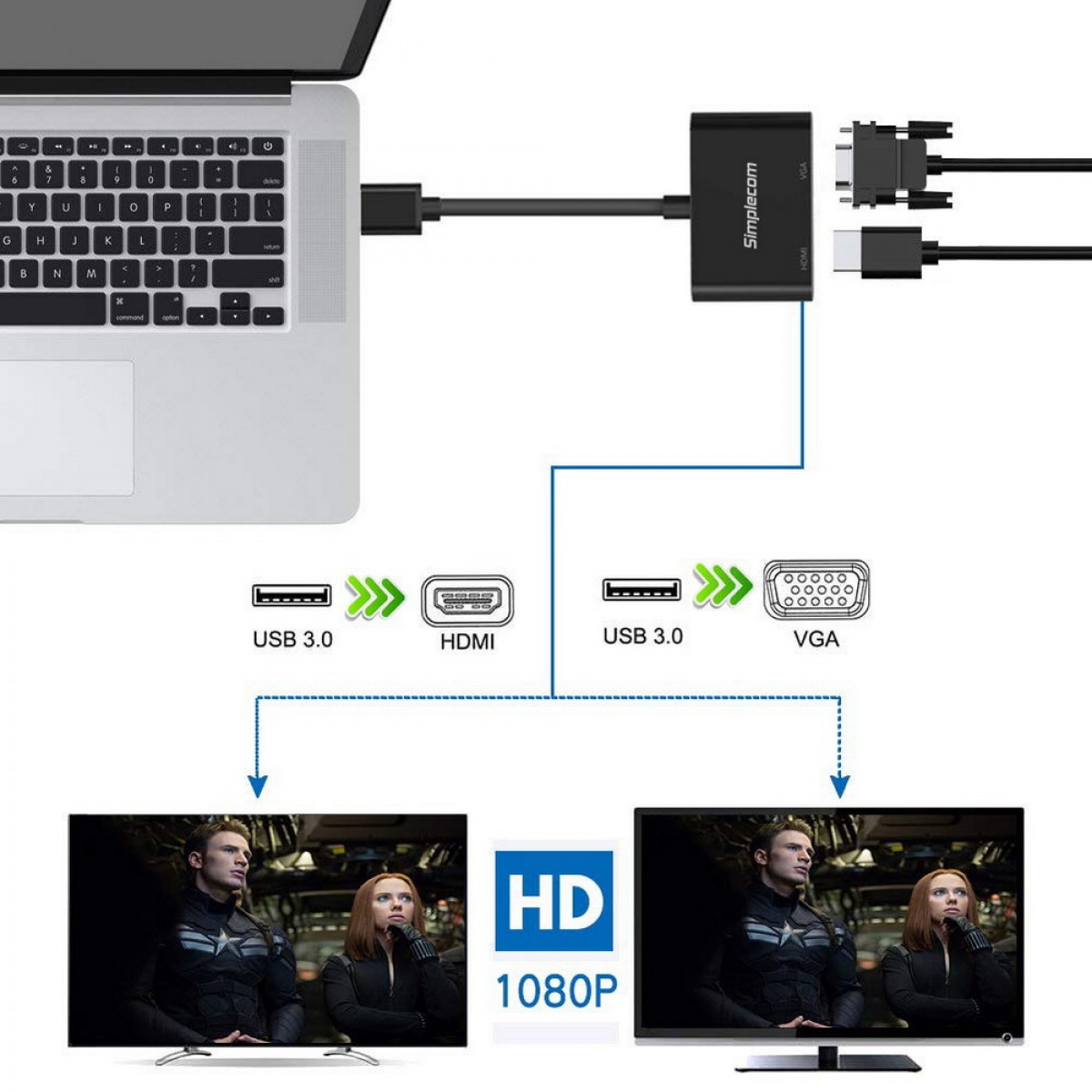

This USB 3.0 to HDMI+VGA video card adapter turns an available USB 3.0 port into an HDMI or VGA output with high resolution up to 1080p. It’s an easy way to connect a HDMI or VGA display to a computer that require additional display when the other video ports are occupied. You can mirror or extend the connected monitor for an expanded workspace. The HDMI and VGA ports can output duplicate screen simultaneously. It’s convenient external video solution that makes it easy to add multi-monitor capability to a computer and extend your desktop for presentation.

Features

  • SuperSpeed USB 3.0 Interface, support resolution up to 1920x1080
  • Compact and portable design, easy to carry
  • Simple installation, built-in USB flash for driver software
  • USB powered, no external power required
  • Aluminium casing to ensure stable performance and heat dissipation
  • HDMI port supports both video and audio, VGA output video only
  • HDMI and VGA ports can output duplicate screen simultaneously
  • Support Extend or Mirror Mode
  • Compatible with Windows 7 / 8 / 8.1 / 10

Specifications

  • Input: USB 3.0
  • Output: HDMI, VGA
  • Resolution Support: up to 1920x1080 (USB 3.0), 800x600 (USB2.0)
  • Cable Length: 14cm
  • Dimension: 60mmx39mmx14mm (LxWxH)
  • Weight: 45g
  • Operating Temperature: -5 - 35°C

Downloads

Description Size Type Download
DA316 User Manual 1.2 mb pdf
Mac v1.4.2 139.36 kb zip
Windows v2.1.34054.0 5.75 mb zip

FAQ

Important Note:

 While plug this adapter to your computer first time, you'll see there is a new flash drive “FL2000” under My Computer or This PC, then double clicks setup file inside flash drive to install the driver. You can also download driver from our website.

If you have any trouble to install the driver software, try to turn off anti-virus software and low down the firewall level before install the driver. You can turn on again after installation.

If you can't get higher resolution on your monitor, check if you plug the adapter to a USB3.0 port of your PC, USB 2.0 only support resolution up to 800x600.

The USB 3.0 to HDMI VGA adapter works on Windows 7,8,10 only, Windows XP and Vista are not supported.

Is this adapter plug and play?

No, you need to install the driver software from built-in USB flash, or download from web.

How to install Driver?

While plug this adapter to your computer first time, you'll see there is a new flash drive “FL2000” under My Computer or This PC, then double clicks setup file inside flash drive to install the driver. You can also download from our website.



Why installation program won’t start?

If you have any trouble to install the driver software, try to turn off anti-virus software and low down the firewall level before install the driver. You can turn on again after installation.



Why I only get low 800x600 resolution?

If you can't get higher resolution on your monitor, check if you plug the adapter to a USB3.0 port of your PC, USB 2.0 only support resolution up to 800x600.



Can it support Windows XP and Vista?

No, this USB 3.0 to HDMI VGA adapter works on Windows 7,8,10 only, Windows XP and Vista are not supported.



Can it support Mac?

Yes, but not all version macOS are supported, beta driver for mac is available for download from our website

  • 10.14.2 - latest: Supported
  • 10.13.4 - 10.14.1: Support Mirror Mode Only
  • 10.13 - 10.13.3: Supported
  • 10.12: Supported
