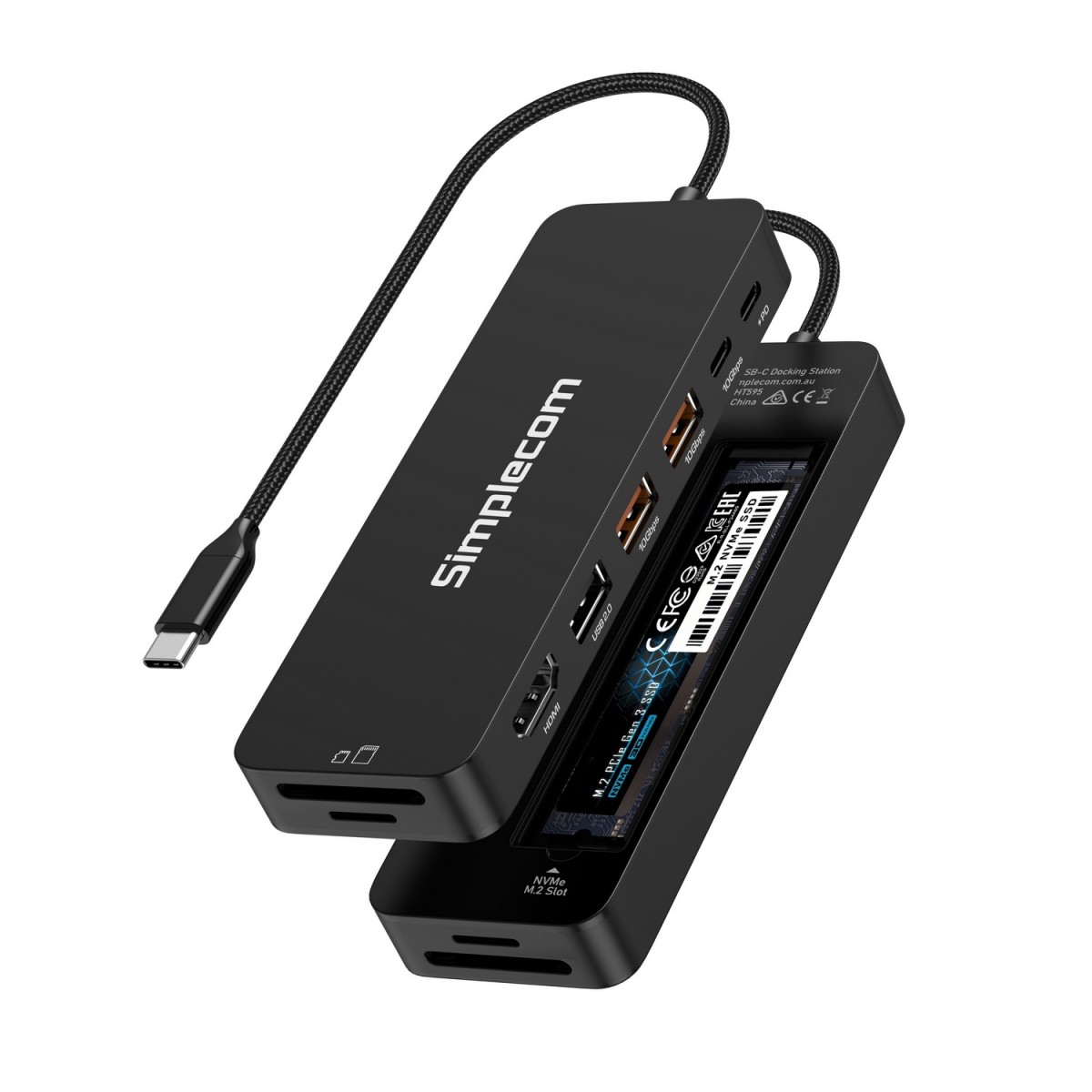

Simplecom CHT595 9-in-1 USB-C Multiport Docking Station with NVMe M.2 Enclosure

Expand your laptop's capabilities with this versatile 9-in-1 USB-C Multiport Docking Station. It transforms a single USB-C port into a full-featured hub with extra USB ports, HDMI, card readers, PD charging, and even an integrated NVMe M.2 SSD slot, turning your dock into a high-speed portable USB drive.

If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that enhances productivity and convenience.

• HDMI 2.0 Video Output up to 4K@60Hz
Enjoy stunning Ultra HD visuals with the HDMI 2.0 port, supporting resolutions up to 4K@60Hz on compatible laptops. Experience smooth, fluid playback, perfect for fast-action scenes, gaming, or high-quality video content.

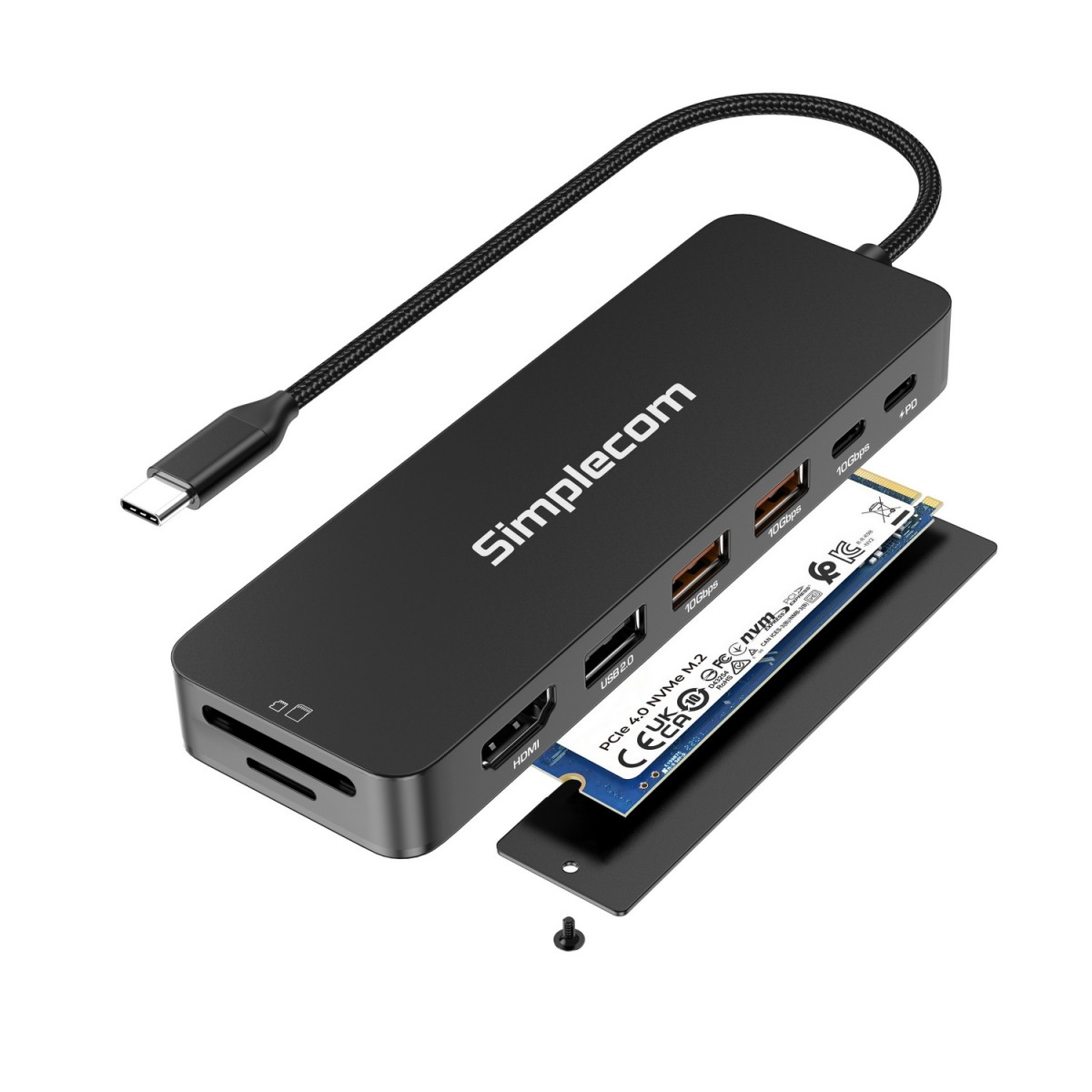

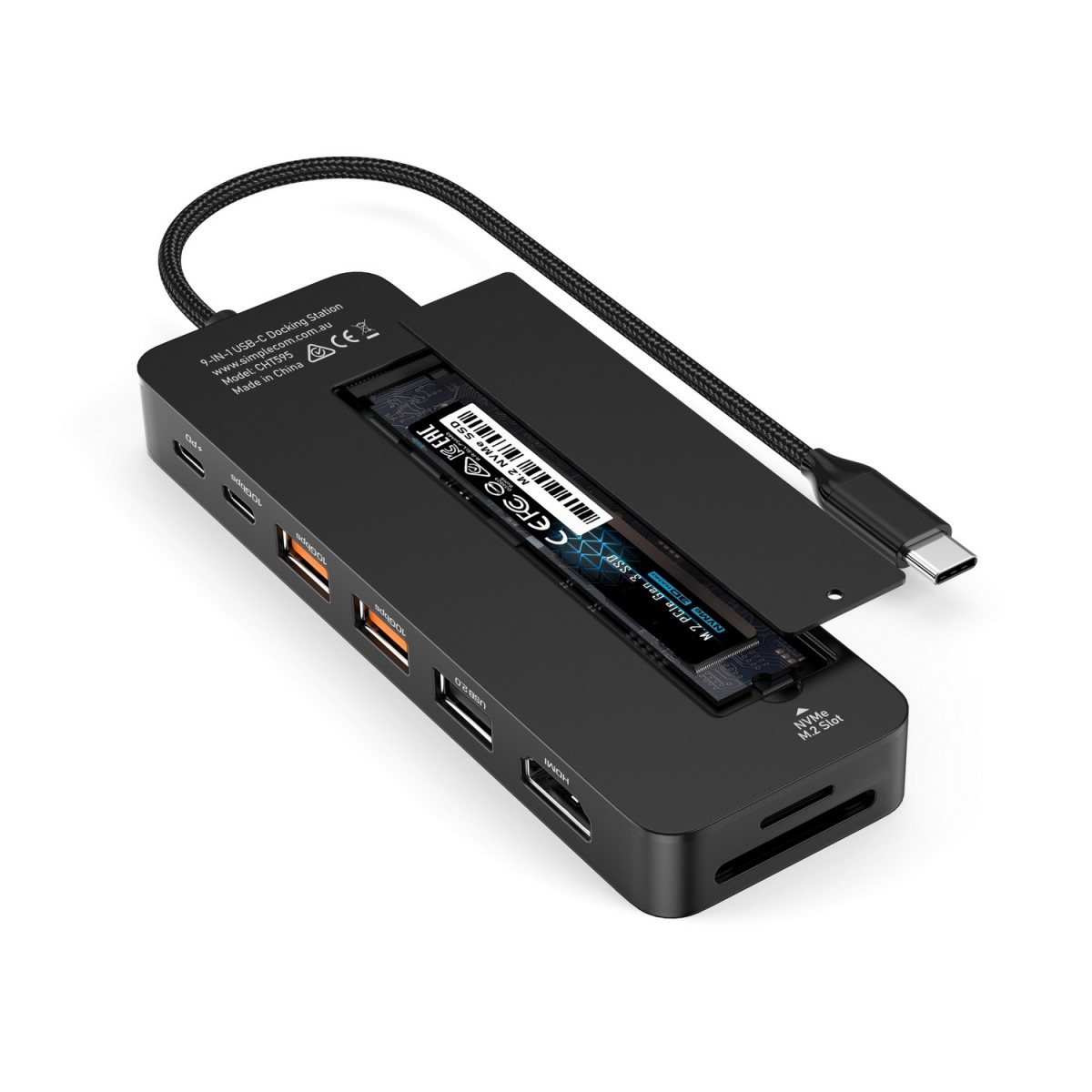

• Integrated NVMe M.2 SSD slot
Transform your docking station into a high-speed portable drive with the built-in NVMe M.2 SSD slot for fast data access and convenient storage expansion, combining storage and connectivity in one device.

• 10Gbps USB-C and USB-A Ports
Experience ultra-fast data transfer speeds of up to 10Gbps with the USB 3.2 Gen 2 USB-C and USB-A ports, perfect for quickly transferring large files and backups.

• SD/MicroSD Card Reader
Easily access and transfer photos, videos, and files from SD or microSD cards with plug-and-play convenience.

• 100W USB-C Power Delivery
The USB-C PD port supports up to 100W Power Delivery, allowing you to charge your laptop efficiently while using other connected devices.

• Stylish and Durable Aluminium Casing
Crafted from premium aluminium alloy, the metal housing provides excellent heat dissipation and a sleek, modern look, ensuring both durability and stable performance.

Features

• 9-in-1 USB-C multiport docking station for all-in-one laptop expansion
• Expands a single USB-C to extra USB ports, HDMI, Card Reader, PD and an NVMe SSD slot
• Integrated NVMe M.2 SSD slot transforms the dock into a portable USB drive
• USB 3.2 Gen 2 interface delivers data transfer speeds up to 10Gbps
• Two 10Gbps USB-A and one 10Gbps USB-C ports for ultra-fast file transfers
• HDMI 2.0 supports up to 4K@60Hz in both Mirror and Extended display modes
• 2-Slot Card reader for SD and microSD memory cards
• USB-C PD port supports up to 100W charging input
• Premium aluminium alloy housing for durability and heat dissipation
• Compact and lightweight design for travel-friendly portability
• Built-in flexible USB-C cable for hassle-free connectivity
• Plug-and-play, no driver installation required

Specifications

• Host Interface: USB-C
• USB Hub: 2x USB-A Female (10Gbps), 1x USB-C Female (10Gbps)
• HDMI Port: HDMI 2.0, up to 3840 x 2160p at 60Hz (4K@60Hz)
• Card Reader: SD and MicroSD (USB 2.0 Hi-Speed, 480Mbps)
• PD Input: USB-C PD (charging only), up to 100W
• Compatible M.2 Protocol: NVMe M.2
• Compatible M.2 Size: 2242, 2260, 2280
• M.2 Slot Data Transfer Rate: up to 10Gbps
• Operating Temperature: 0 – 55°C
• Housing Material: Aluminum
• Dimensions: 13 x 4.2 x 1.5 cm
• Cable Length: 15cm
• Weight: 80g

System Requirements

• Operating system: Windows 10 or later, macOS 10.12 or later
• Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
• Laptop GPU with DP 1.4 or higher supports up to 4K@60Hz, laptop GPU with DP 1.2 supports up to 4K@30Hz

Important Notes

• Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
• 4K@60Hz is supported by laptop GPUs with DP 1.4 or higher version (e.g., Intel 11th Gen Core Mobile Processors or later).
• The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
• NVMe M.2 slot supports only NVMe protocol M.2 SSDs (M Key), SATA M.2 SSDs are not compatible.
